Default gateway :192.168.0.1
a)Configuration by selecting the “Broadband link” from the menu
Click the Broadband Link tab.

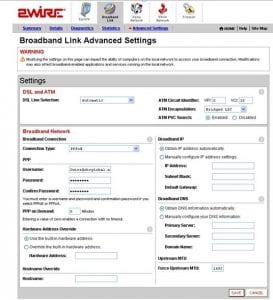

Click the Advanced Settings link under the tab to open the Broadband Link Advanced Settings page.
Modifying DSL and ATM Settings
From the DSL Line Selection drop-down menu, select Automatic
In the ATM Circuit Identifier VPI and VCI fields, VPI=0 and VCI=35
From the ATM Encapsulation drop-down menu, select Routed LLC,
In the ATM/PVC Search field, click the Enabled
Click SAVE.
Modifying Broadband Connection Settings

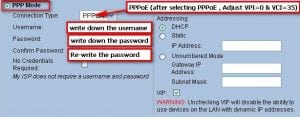

From the Connection Type drop-down menu, select the connection type: PPPoE
In the Username field, xxxxx@ISP
In the Password field, xxxxxxxx
In the Confirm Password field, xxxxxxxx
In the PPP on Demand field (0) the PPP session will not time-out (it will be always-on).
Click SAVE.

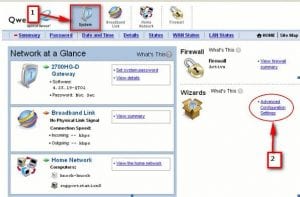

b)Another way of Configuration by selecting the System tab from the menu
and get
and for restarting the CPE
