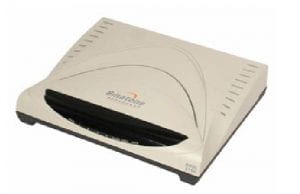

BINATONE Router Configuration

BINATONE Router Configuration

Cpe Details

Wan Configuration

• Type following IP address on the address bar and press enter
•     http://192.168.1.2
•     Insert admin as a username and keep blank the pw field
•     You will see following window

      ·         Select PPP Status in Status Menu and You will see following window

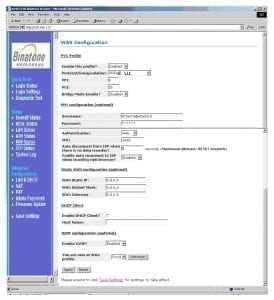

•     Then click the check the wan configuration Link and You will see following window
•     Put the following values in relevant fields and keep others as it is

                            Protocol/Encapsulation     PPPOE LLC

                            VPI    :    0     and     VCI    :    35

                            Username    [email protected]

                                    password        xxxxxxx

·         Then click the save settings link and You will see following window

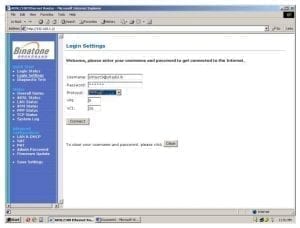

• Then your router will reboot automatically. After that click the logging settings link and You will see following  window

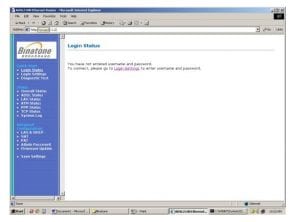

•     Then go to login status and click the connect button
